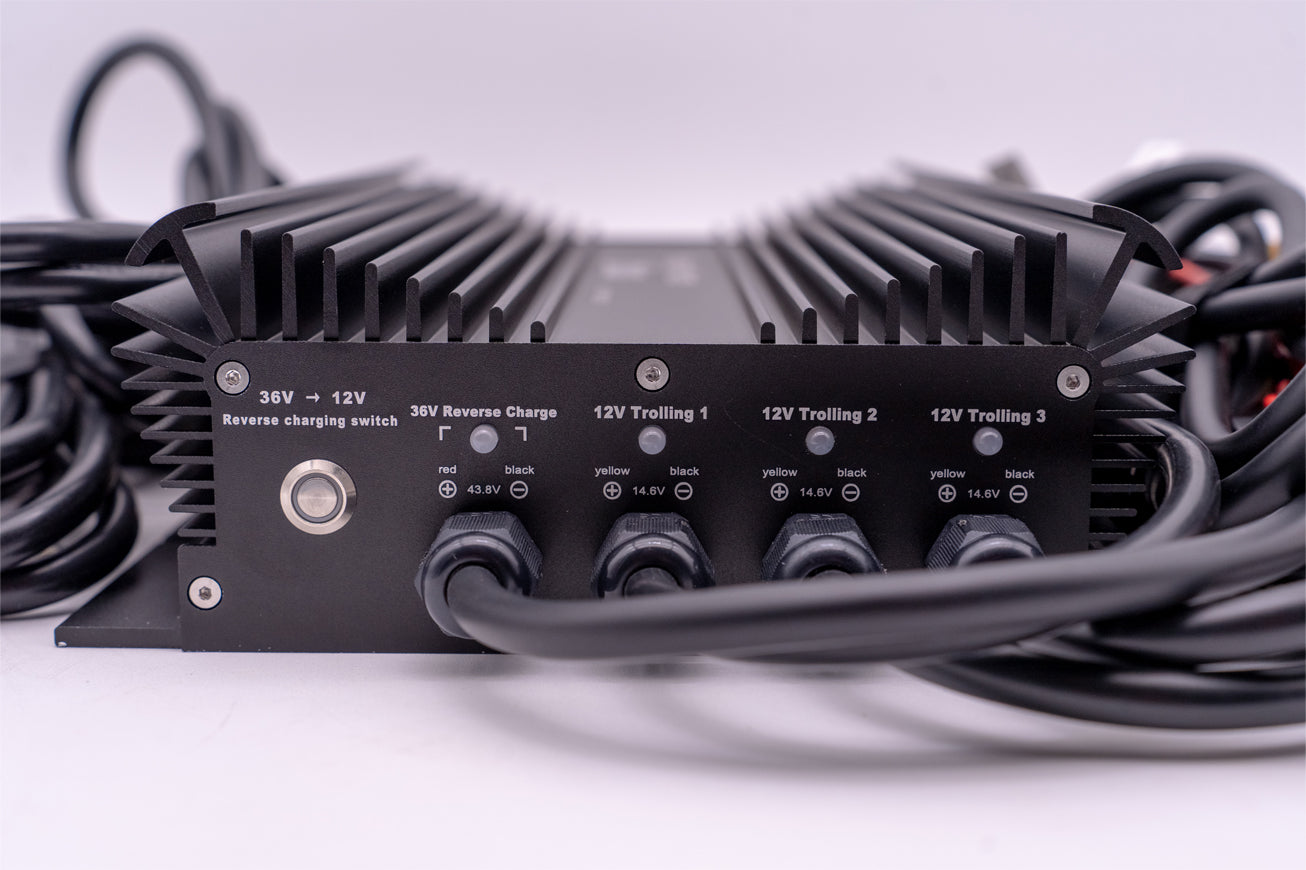

Monster Marine Lithium™ DYNO5 Dynamic Charge System
The Future of Smart Marine Charging — Engineered for the Angler Who Demands More.
⚙️ Overview
The DYNO5 Dynamic Charge System is Monster Marine Lithium’s newest innovation, designed from the ground up for total energy control on the water.
Custom-built, field-tested, and trusted by professional anglers, the DYNO5 keeps every battery in your system fully charged and perfectly balanced — automatically.
No more center battery imbalance in your 36V trolling setup.
The DYNO5 ensures each battery in your system stays synchronized and performing at peak efficiency.
🔋 Key Features
1. True 5-Bank Dynamic Charging
Balances and individually charges all five 12V batteries in your boat:
Each battery receives a dedicated charge lead, ensuring even voltage recovery after long days on the water.
2. Integrated MML Smart Battery Monitoring
The Smart Battery Monitoring System automatically supervises and maintains all batteries while plugged into shore power.
Just connect to AC — DYNO5 manages voltage, health, and balance for you.
3. On-The-Run Charging
While your outboard runs, the DYNO5 monitors and prioritizes your cranking battery.
Once fully charged, it redirects surplus current to your trolling batteries — keeping your full system topped off, even while you fish.
4. Built-In Emergency Jump-Start
Press the onboard button to activate reverse-charge mode — instantly pulling power from your 36V system and converting it to 14V / 30A to jump or recharge your cranking battery.
Use for emergency restarts or short-term top-ups while on the water.
5. Automatic Lithium Battery Wake-Up
If your lithium batteries ever reach low-voltage cutoff, DYNO5 auto-detects and safely wakes the Battery Management System (BMS) — restoring charge flow with zero manual input.
📊 Technical Specifications
| Category |
Details |
| System Type |
5-Bank Dynamic Charging System |
| Compatible Batteries |
(5) 12V systems — 1 Cranking, 3 Trolling (36V), 1 Electronics |
| Input Voltage (AC) |
100–240V AC, 50/60 Hz |
| Max Output |
14.4-14.6v @ 10A per bank (50A total) |
| Emergency Jump Output |
14 V DC @ 30 A (Reverse-Charge Mode) |
| Battery Type Compatibility |
Lithium-Ion, LiFePO₄, AGM, and Flooded Lead-Acid |
| Monitoring System |
MML Smart Battery Monitoring (Integrated) |
| Protection |
Short Circuit / Reverse Polarity |
| Operation Modes |
Home Charging / On-the-Run / Emergency Jump / BMS Wake-Up |
🛠️ What’s Included
| Item |
Description |
| DYNO5 Dynamic Charge System |
5-Bank Smart Marine Charger |
| AC Power Cable |
6ft marine-grade cord |
| DC Output Leads |
Pre-terminated ring connectors |
| Mounting Kit |
U hole shaped mounted holes |
| User Manual |
Setup, safety, and troubleshooting guide |
💪 Why Choose Monster Marine Lithium™
-
Engineered for Anglers – Designed and tested by professionals all over the nation.
-
Smart Efficiency – Prioritizes charging dynamically for maximum performance.
-
All-in-One Integration – One system to charge, balance, and monitor everything.
-
Rugged Marine Build – Salt-resistant, vibration-tested, and sealed for harsh conditions.
-
Backed by Warranty – 3-Year Full Replacement.
