GMI 40 is the compact, easy-to-use multipurpose marine instrument that provides real-time data from your compatible devices on its high-resolution touchscreen display.
Features:
High-Resolution 4.3" touchscreen display
Easily connects to onboard sensors and engines

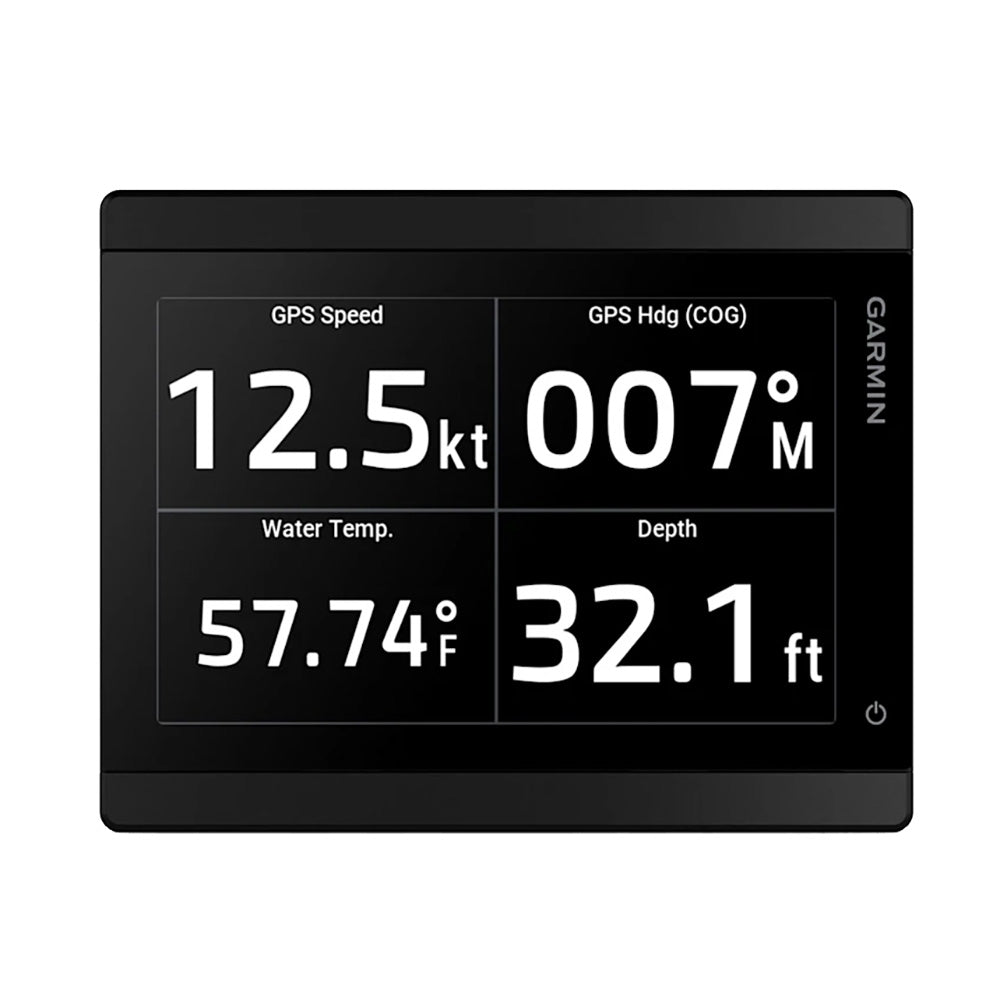

Displays real-time wind, speed, depth, heading, engine, fuel data, and more from your compatible devices
Integrates with NMEA 2000® and Garmin Bluenet™ networks
Software updates via Activecaptain® smartphone app
Wirelessly shares data to your Garmin marine smartwatch
SLEEK & STREAMLINED
This modern touchscreen display has an intuitive interface and edge-to-edge glass that complements the look of your Garmin chartplotters.
COMPLETELY INTEGRATED
As an NMEA 2000-certified device, your GMI 40 marine instrument integrates smoothly with compatible systems across your boat.
SIMPLE YET CUSTOMIZABLE
Flexible gauge sets and page layouts let you place the data you need exactly where you want it.
A NETWORK YOU CAN TRUST
Garmin BlueNet offers streamlined connectivity with compatible Garmin devices for full-system integration.
SEAMLESS DATA

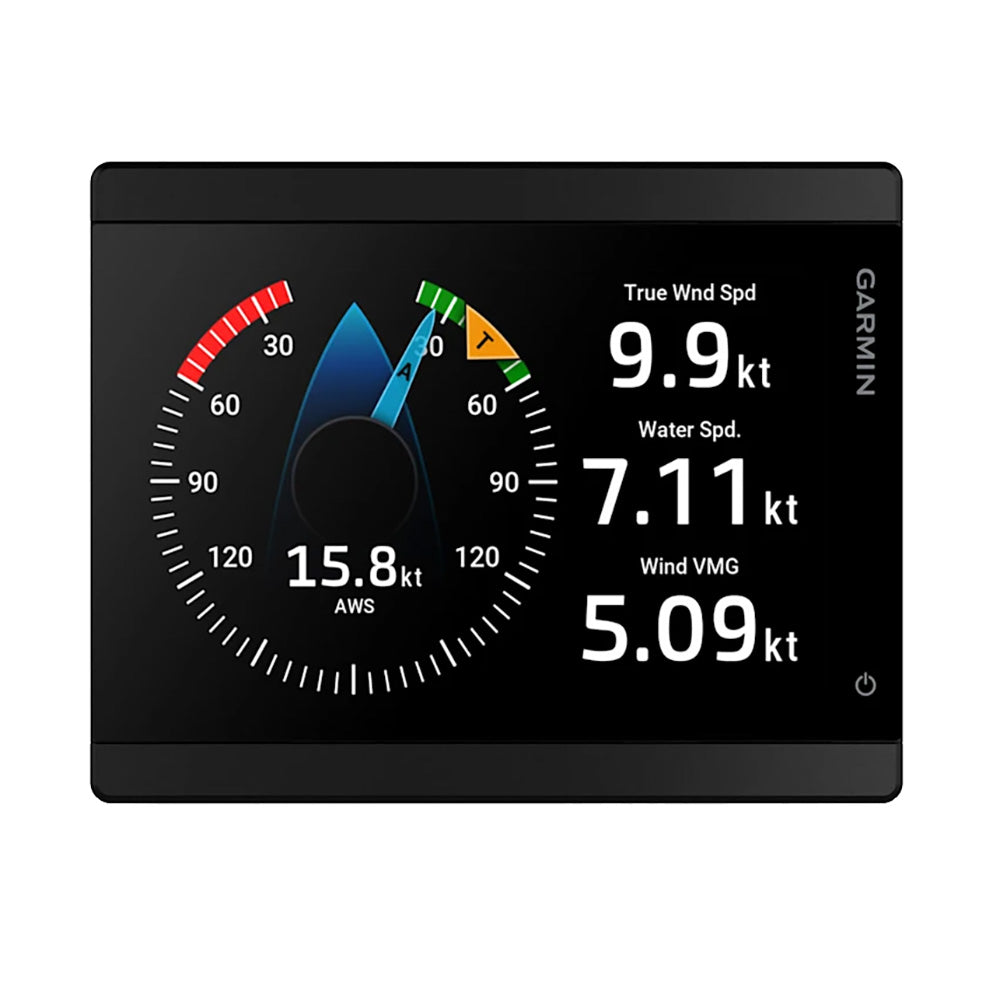

See the shift before you feel it with easy-to-read real-time wind, speed, depth and heading insights from your compatible devices.
SIMPLIFIED ENGINE DATA
See engine and fuel data from your compatible devices at a glance to easily monitor levels and optimize performance.
Specifications:
Dimension: 4.53" x 3.58" x 1.18" (115 mm x 91 mm x 30 mm)
Weight: 0.53 lbs (240 g)
Water rating: IPX7
Display Type: WVGA, IPS LCD
Display Size: 4.3" diagonal; 3.68" x 2.21" (109 mm diagonal; 93.6 mm x 56.2 mm)
Display resolution: 800 x 480 pixels
Mounting Options: Flush mount
Input: Touchscreen
Glass-bonded display
Temperature range: From 5° to 158° F (from -15° to 70° C)
Voltage range: 9 to 32 Vdc
Power Consumption: 2.5 W typical; 4.4 W max
Compass-safe distance: 5.9" (150 mm)
Garmin BlueNet network ports: 1
In The Box:
GMI™ 40 marine instrument
Black trim piece snap cover
Protective cover
For the NMEA 2000® network: 2 m backbone/drop cable and T-connector
