The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with a built-in ECU. Get precise rudder awareness with minimal mechanical wear.
Features:
BUILT-IN ECU FULLY ENGINEERED AND MADE BY GARMIN
PREMIUM AUTOPILOT PERFORMANCE WITH MAXIMUM THRUST UP TO 1,050 LBS
CONTACTLESS RUDDER POSITION SENSOR FOR SUPERIOR RELIABILITY AND FEWER MOVING PARTS
SIMILAR FORM FACTOR TO OTHER ACTUATORS ALLOWS EASY REPLACEMENT FOR RETROFIT
USER-ADJUSTABLE MAX FORCE OUTPUT SUITS A WIDE RANGE OF VESSELS
MORE ACCURATE TACK AND GYBE WITH ADJUSTABLE SPEED, AUTO RESPONSE, AND IMPROVED UPWIND HOLD
FITS YOUR VESSEL
The brushless linear actuator is suitable for a wide range of sailboats and catamarans (up to 45 feet/maximum 33,000 lbs displacement).

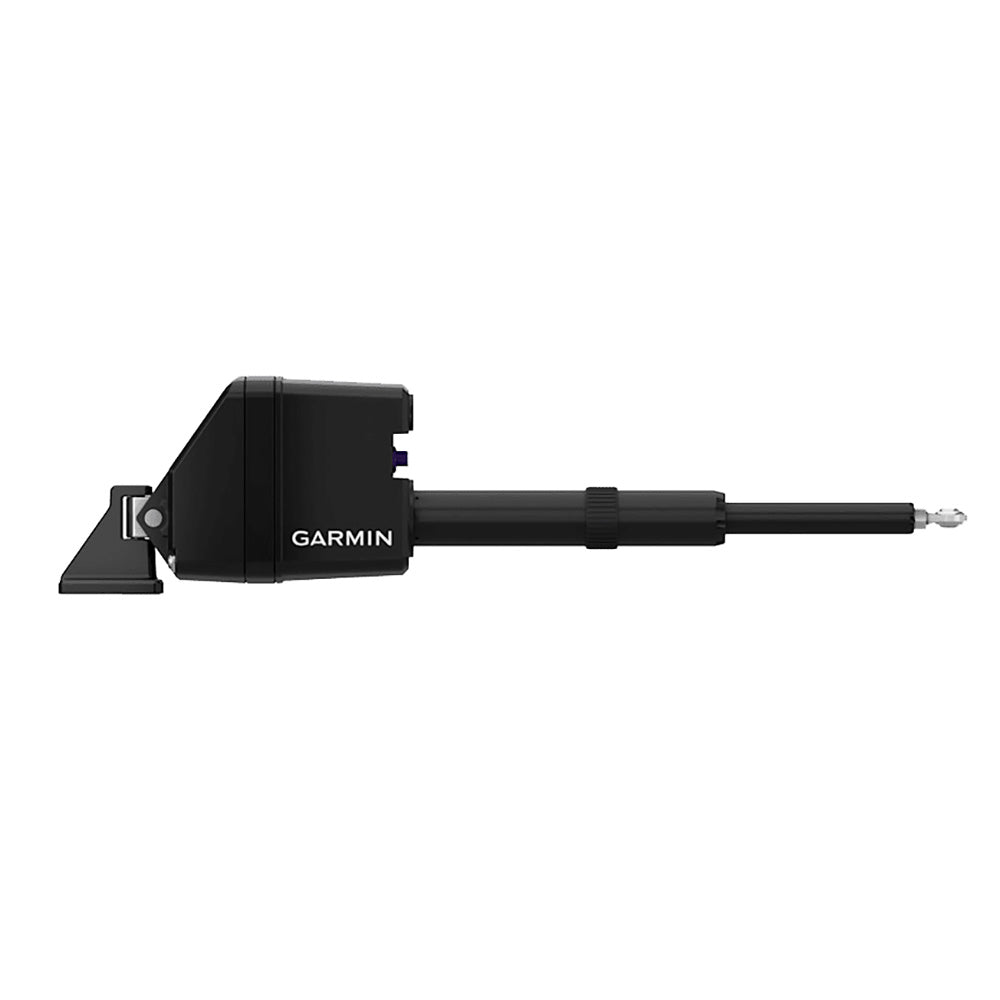

SMARTDRIVE ACTUATOR
This product is the first sailboat autopilot to use a brushless DC motor with a built-in ECU to provide superior performance and simplified installation.
Specifications:
Drive unit type: Mechanical linear
Maximum boat displacement: 33,000 lbs (15,000 kg)
Stroke length: 12" (300 mm)
Maximum thrust (adjustable software setting): High: 1050 lbs (476 kg), Medium: 600 lbs (272 kg), Low: 400 lbs (181 kg)
Dimensions, including base, mid-stroke (WxHxD): 4.5" x 7.75" x 27.6" (114 x 197 x 700 mm)
Weight: 19.8 lbs (9 kg)
Supply voltage: 10 to 32 Vdc
Average typical current at 12 V: 0.8 to 5 A, depending on conditions
Peak momentary current: 25 A
Lock-to-lock time: 11 seconds
Operating temperature: -20° to 55° C (-4° to 131° F)
