**Note: Make sure to select correct gimbal bracket height size for your mounting location**

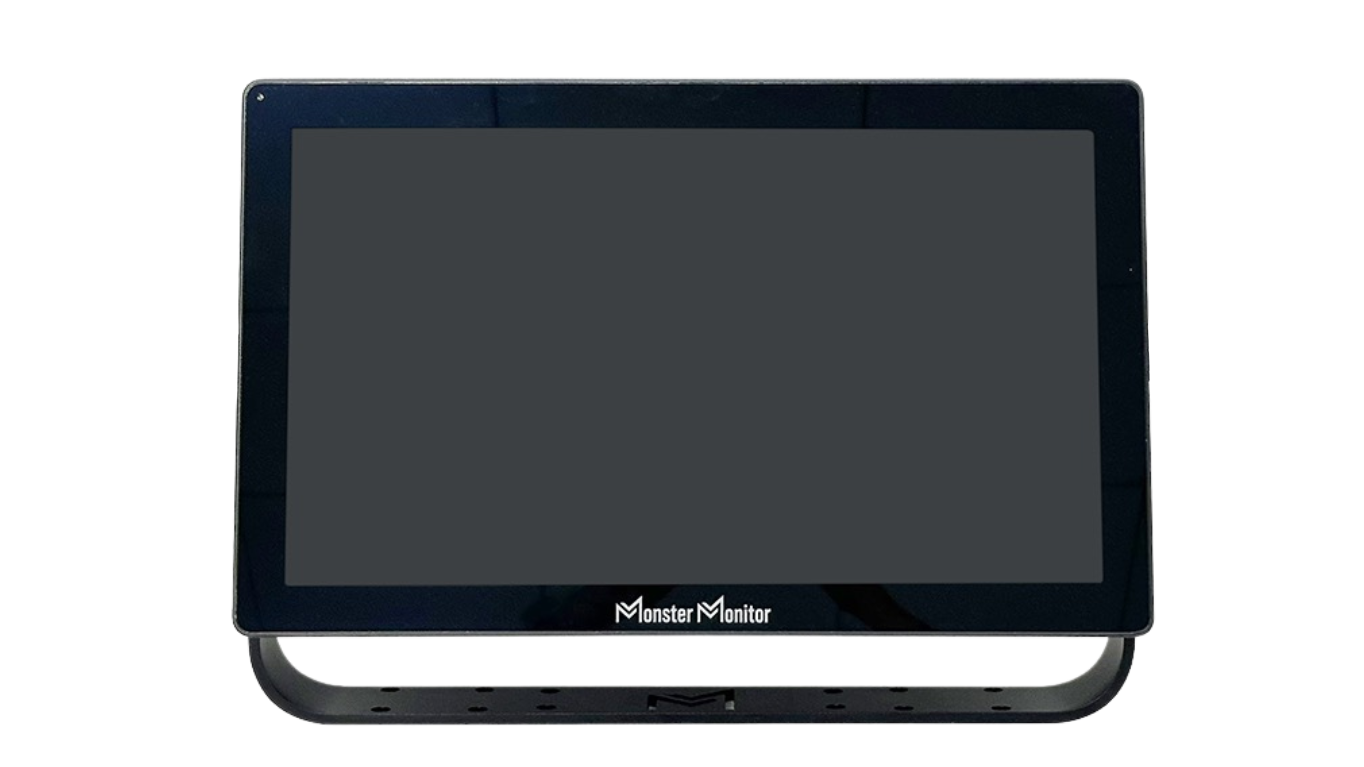

⚡ Monster Monitor Focus 22 – Marine Display
Model: Focus 22
Category: Professional Marine Touch Display Monitor
🧭 Overview
The Monster Monitor Focus 22 is the flagship of the Focus Series — built for serious anglers and captains who demand maximum visibility, accuracy, and control from their marine electronics. Designed for Forward-Facing Sonar (FFS) optimization, the Focus 22 delivers unmatched clarity and response with a 21.5" Full HD 1920×1080 display, 1500-nit brightness, and vac-sealed, optically bonded, anti-reflective glass that performs flawlessly in direct sunlight or glare-heavy environments.
Built for seamless integration with Garmin head units and compatible with Lowrance (soon) and Humminbird (with limited mirror functionality), the Focus 22 combines industrial-grade durability with touchscreen precision and top-tier HDMI video performance. The all-aluminum, fanless housing and IP67 waterproof design make this display ready for the toughest conditions.
⚙️ Key Features
-
Massive 21.5" Full HD Display – 1920×1080 resolution with 1500 nits brightness for maximum viewing surface and clarity.
-
10-Point Capacitive Touchscreen – Ultra-responsive, glove-compatible touch operation.
-
Vac Sealed Optically Bonded & Anti-Reflective – Reduces glare, eliminates internal fogging, and enhances sonar image accuracy.
-

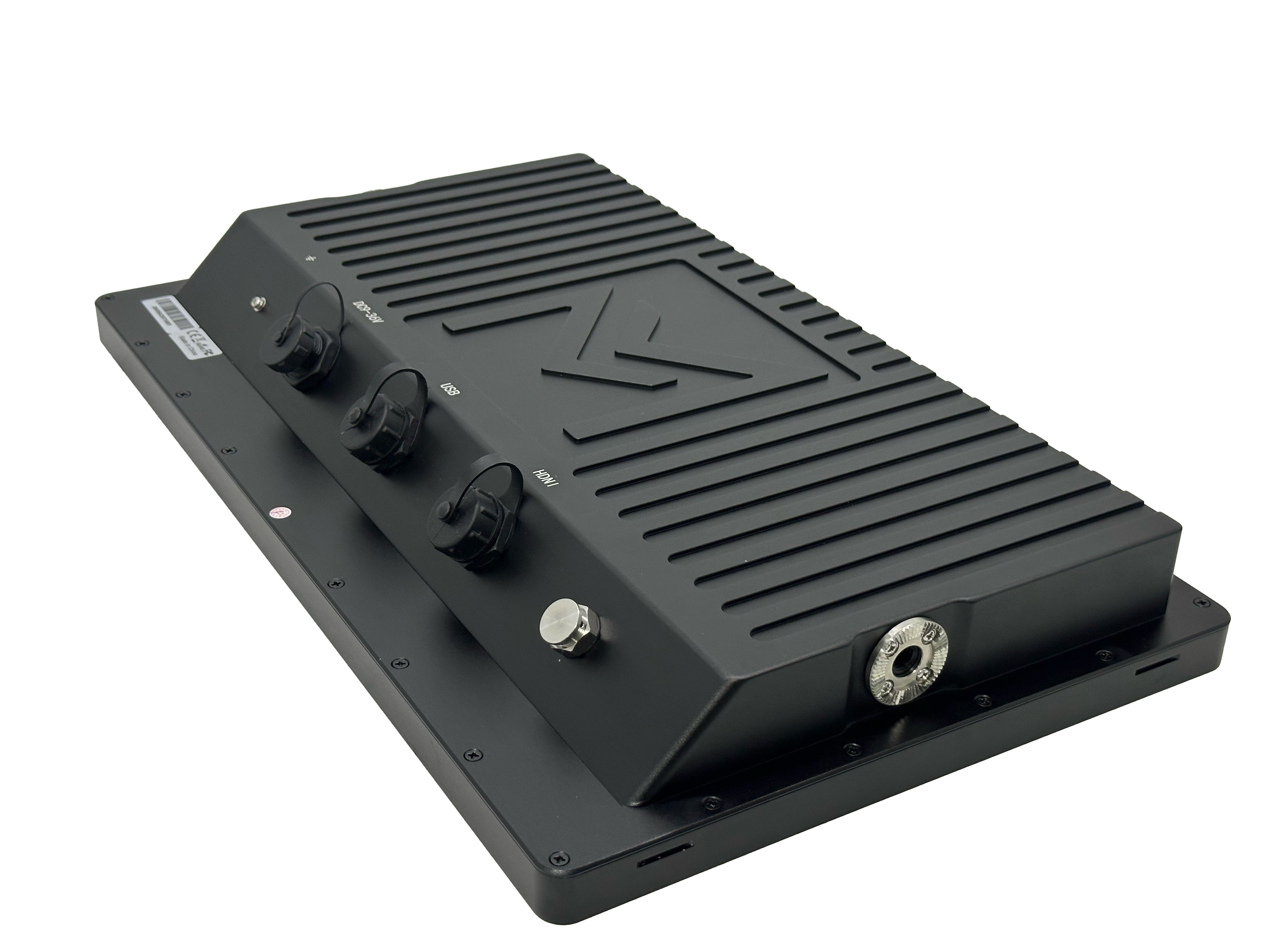

True Marine-Grade Build – Heavy-duty all-aluminum body, IP67 waterproof sealing, and fanless cooling.
-
Smart Brightness Control – Auto light sensor with manual brightness adjustment for perfect visibility day or night.
-
Flexible Power Range – Operates from 9–36V DC with built-in protection and a 10A fuse requirement.
-
Universal HDMI + USB-A Ports – Integrates seamlessly with Garmin and other marine electronics.
-
Efficient Power Draw – Less than 68W power consumption for extended operation.
-

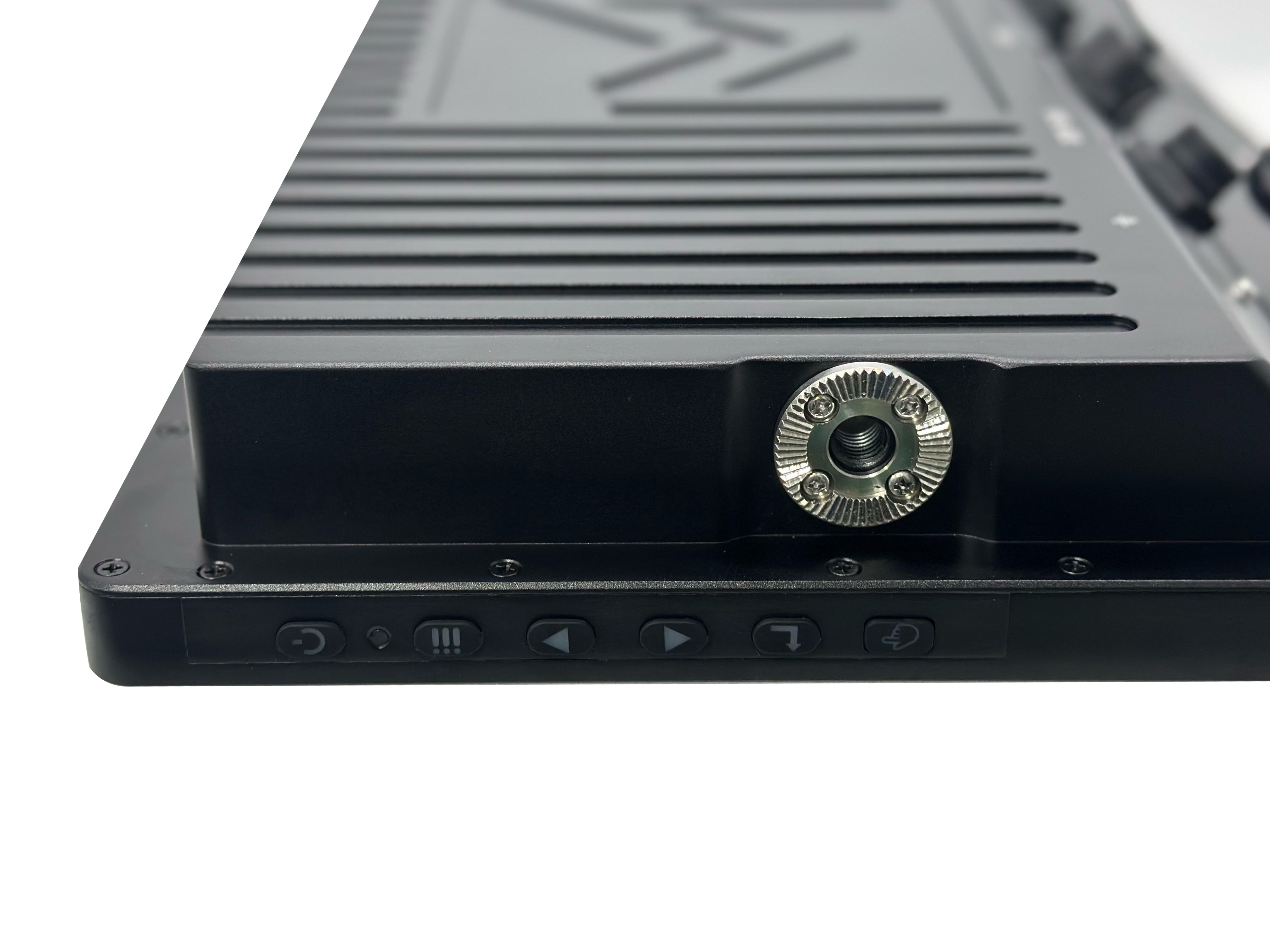

Touch Lockout Button – Easily disable touch controls for cleaning or wet-weather conditions.
⚓ Installation & Mounting
The Focus 22 mounts securely into its included cradle with adjustable tilt for optimal viewing angles. Follow all installation safety steps, including proper fuse sizing, grounding, and cable alignment. Always install on land or while docked to ensure secure connections before powering on.
📊 Technical Specifications
| Category |
Specification |
| Panel Size |
21.5" |
| Resolution |
1920 × 1080 (Full HD) |
| Aspect Ratio |
16:9 |
| Brightness |
1500 nits |
| Touch Type |
10-point capacitive |
| Power Input |
9–36V DC (10A fuse required) |
| Power Consumption |
Typical 4.4A / Max 5.2A |
| Connectivity |
HDMI (IP67), USB-A (IP67) |
| Brightness Control |
Auto-sensing / manual |
| Construction |
Fanless, IP67 waterproof |
| Surface Treatment |
Anti-reflective, 7H hardness |
| Net Weight |
15.5 lbs (7.03 kg) |
| Operating Temp |
-20°C to 70°C (-4°F to 158°F) |
| Humidity |
Up to 100% |
🧭 Compatible Systems
Garmin GPSMAP® (Mirror and Touch Control)
8610 | 8612 | 8616 | 1243 | 1623 | 1643 | 8700 box
Garmin Echomap (Mirror Only – No Touch Control)
162 | 166
Humminbird Apex (Mirror Only – No Touch Control)
13 | 16 | 19
Lowrance (yes call us to learn how to now)
Compatible units Coming Soon
HDMI & USB ports support full video and touch control.
⚡ Note: Power and ground circuits must include a properly rated fuse (required for warranty).
🔧 Warranty
The Monster Monitor Focus Series is backed by a 2-Year Limited Warranty covering defects in materials and workmanship under normal use. Damage from improper installation, misuse, or forced connections is not covered.
📧 monstermarinemonitors@gmail.com
📞 501-463-6545
(Subject line: Warranty Concern – Order #)
🟠 In the Box
- Monster Monitor Focus 22 Display
- IP67 HDMI Cable (26')
- IP67 USB Cable (26')
- Power Cable with Locking Ring (15')
- Mounting Cradle & Hardware
- User Manual & Quick Start Guide
💡 Why Choose Monster Monitor

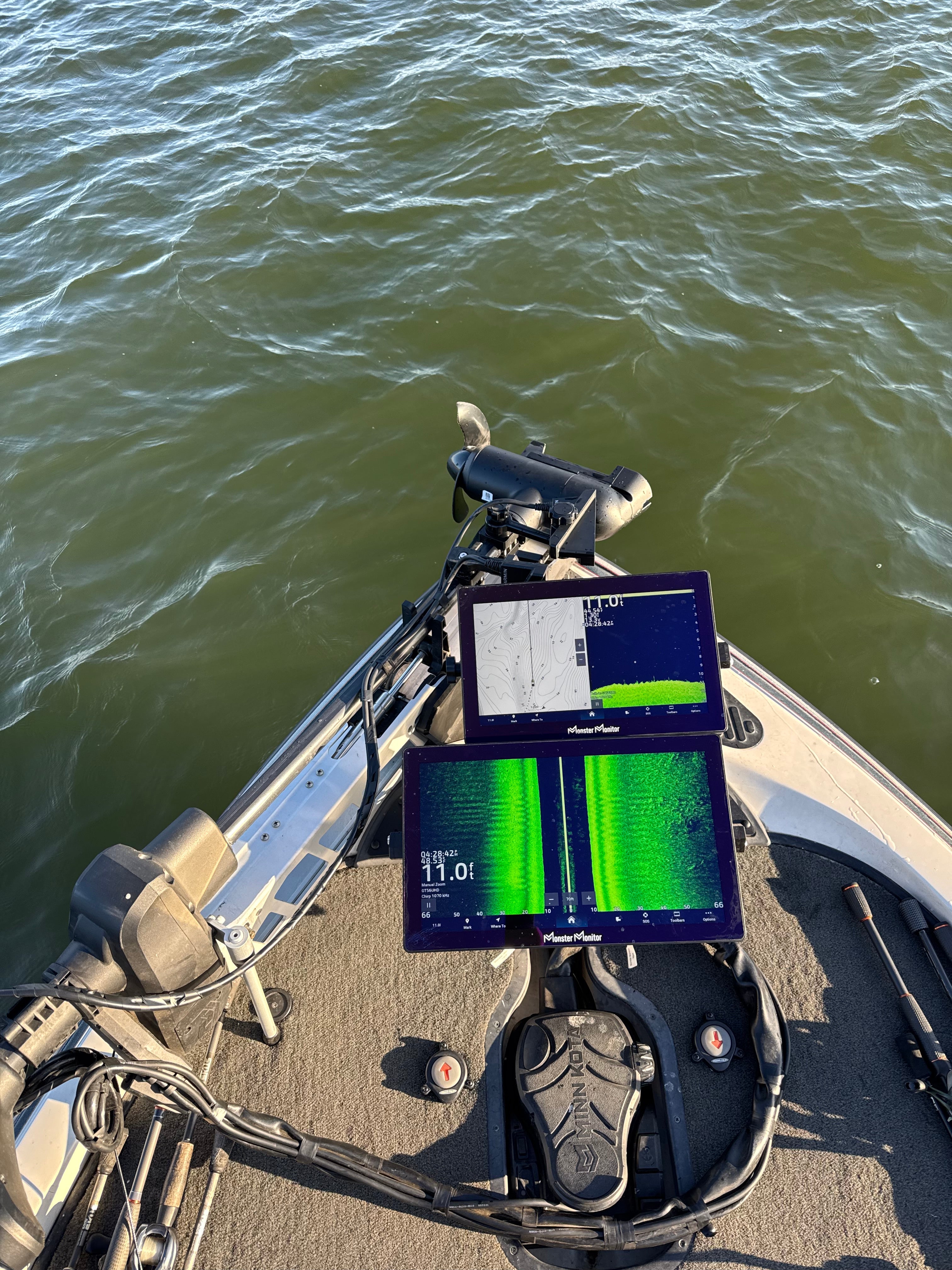

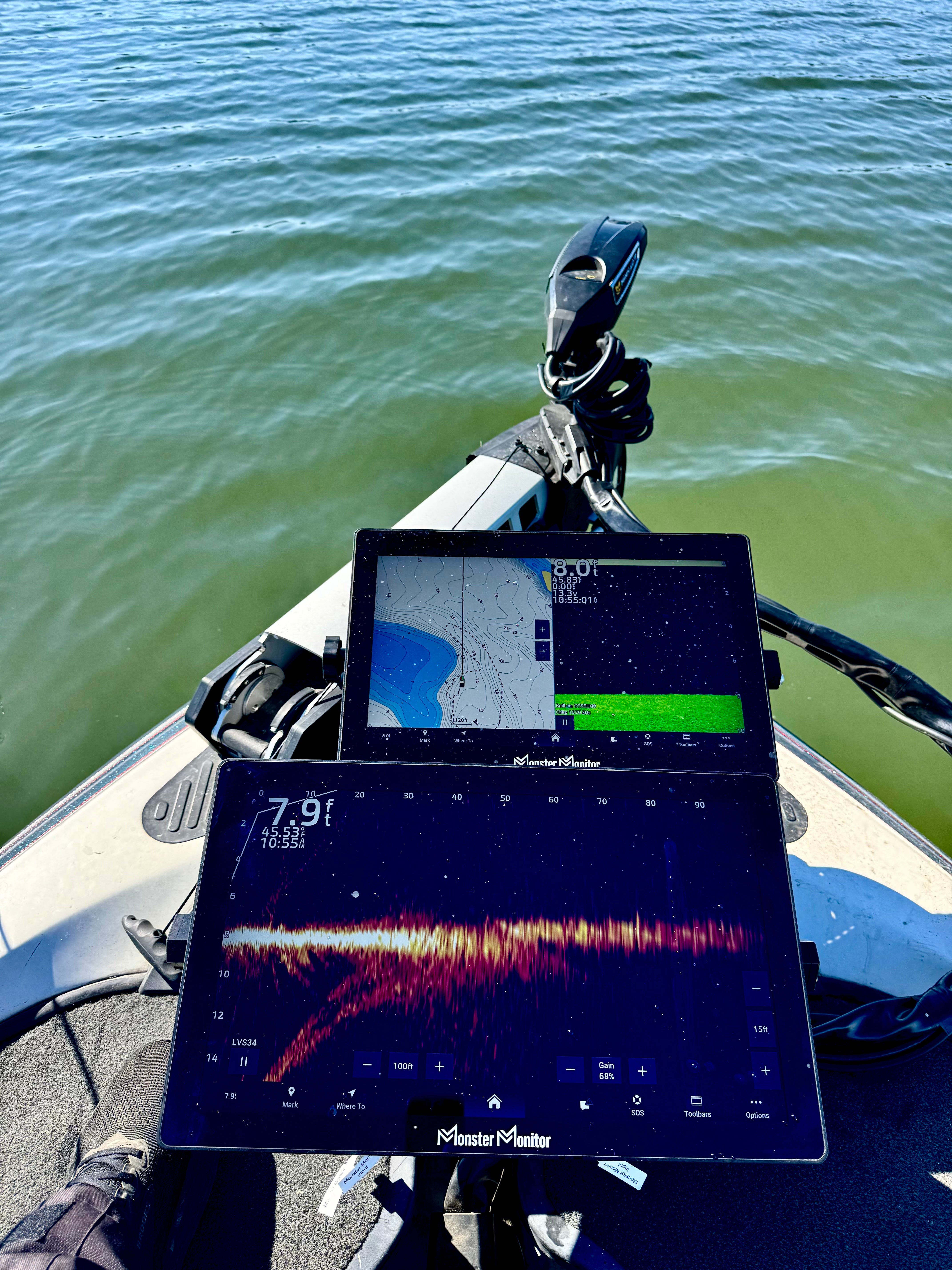

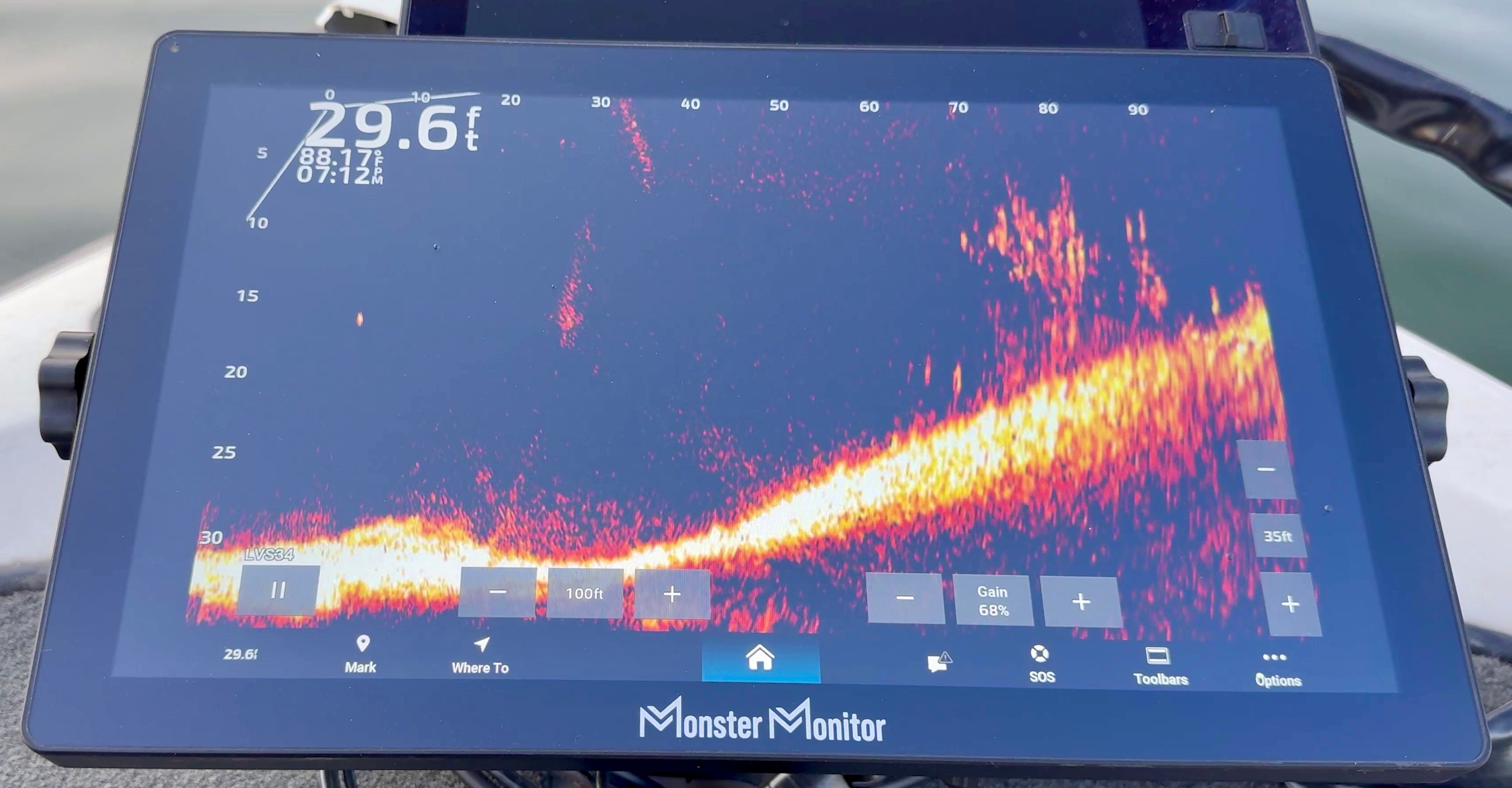

Purpose-built for Forward-Facing Sonar (FFS) clarity and real-time target tracking, the Focus 22 provides a large viewing area, superior contrast, and responsive touch control for total situational awareness on the water. Whether you're scanning deep structure, following bait schools, or navigating offshore routes, the Focus 22 delivers the ultimate command center for your boat.
Stop Guessing. Start Seeing.
